技术参数
Technical parameters |
|
|
产品名称

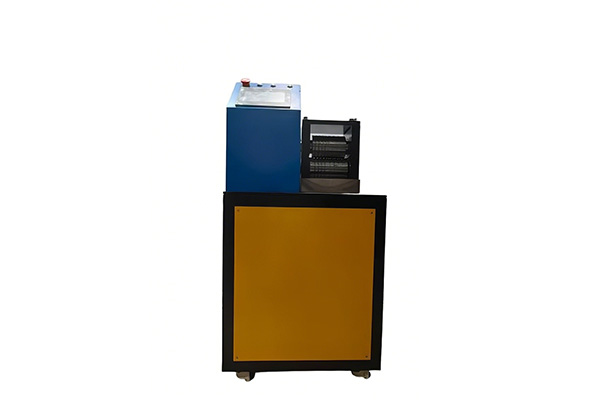

Product name | 成型机 | Forming machine for spring coil heater |
|
|
|
产品组成
Product composition | 1. 电机：伺服电机
2. 触摸屏语言：中英文
3. 脚踏开关 | 1. Motor: servo motor
2. Touch screen language: Chinese or Engish
3. Foot switch |
|
|
|
主要参数
Main parameters | 1. 电压：220 V
功率：2.3 KW
2. 变速箱
3. 触摸屏：繁易
4. PLC：三菱PLC
5. DC电源24V：深圳明纬
6. 伺服电机:普菲德 400w
| 1. Voltage: 220V
Power: 2.3KW
2. Speed changing box
3. Touch screen: Fanyi
4. PLC: Sanling
5. DC power24V:shenzhen mingwei
6. Servo motor: Pufield 400W |
|
|
|
|
|
|
|
触摸屏说明：
1.通电后开机，打开红色按钮，主页显示为语言选择，选择需要的语言，如中文、英文。
1.After powering on and turning on the machine, press the red button. The home page is for language selection. Select the language you need, such as Chinese, English.
2.设置页面。
1）送料长度：指发热条需要塑形的长度。
2）退料长度：表示发热条经过塑形后退料的长度。输入的退料长度一定要比送料长度长，因为发热条经过塑形后长度会变长。
3）送料/退料速度：表示成型机进料或退料的速度，可根据需求调节，速度为1-99。
4）滚筒直径：是指发热条塑形的滚筒的直径，调节滚筒直径可以影响送料长度。
5）WIEI设置：点击WIFI进入设置页面，搜索WIFI。输入WIFI密码并保存，此设置可执行远程控制及软件升级。此设置根据客户需求定制。
2.Settings page.
1) Feeding length: It refers to the length that the heating strip needs to be shaped.
2) The length of the material removed: It indicates the length of the material removed after the heating strip has been shaped. The length of the returned material input must be longer than the feeding length because the heating strip becomes longer after shaping.
3) Feeding/discharging speed: It indicates the feeding or discharging speed of the molding machine, which can be adjusted according to the demand, The speed ranges from 1 to 99.
4) Drum diameter: It refers to the diameter of the drum shaped by the heating strip. Adjusting the drum diameter can affect the feeding length.
5) WIFI Settings: Click on WIFI to enter the Settings page and search for WIFI. Enter the WIFI password and save it. This setting enables remote control and software upgrades. This setting is customized according to customer requirements.
