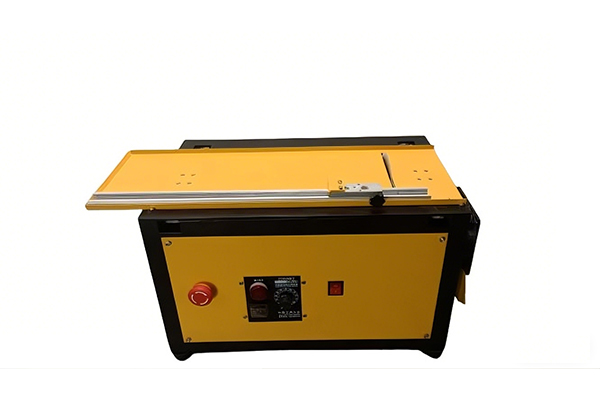

The magnesium rod cutting machine is a small cutting device used for cutting magnesium rods. It features simple operation, fast cutting speed, smooth cut edges and low processing cost.
Front
Back
Side
技术参数Technical parameters
产品名称Product name
镁棒切割机
Magnesium rod cutting machine
产品组成Product composition
1.电机：调速电机2.吸尘器3.锯片：金刚砂轮
1. Motor: variable-speed motor2. Vacuum cleaner3. Saw blade: diamond grinding wheel
主要参数Main parameters
1.电压：220 V 功率：300 W 2.有效行程：500mm 3.切割直径：0-20mm4.切割速度：可调5.吸尘器风力：可调
1. Voltage: 220V Power: 300W2. Effective travel: 500mm 3. Cutting diameter: 0-20mm 4. Cutting speed: adjustable5. Vacuum cleaner wind force: adjustable
操作说明：
1.将需要切割得镁棒放置于机器的尺寸测量区域，调节切割尺寸，然后打开电源开关。
2.正反转开关：可以调节锯片的正转（左旋）和反转（右旋）。
3.调速开关：调节锯片的转速，一般调节到比较静音的状态。
4.吸尘器开关：打开吸尘器电源，根据实际情况调节吸尘器风力大小。
5.调试完成后开始切割。
Operating instructions：
Place the magnesium rod to be cut in the size measurement area of the machine, adjust the cutting size, and then turn on the power switch.
Forward and reverse rotation switch: It can adjust the forward rotation (left rotation) and reverse rotation (right rotation) of the saw blade.
Speed control switch: Regulates the rotational speed of the saw blade, usually set to a relatively quiet state.
Vacuum cleaner switch: Turn on the power of the vacuum cleaner and adjust the wind force of the vacuum cleaner according to the actual situation.
After the debugging is completed, the cutting process begins.
