技术参数
Technical parameters |
|
|

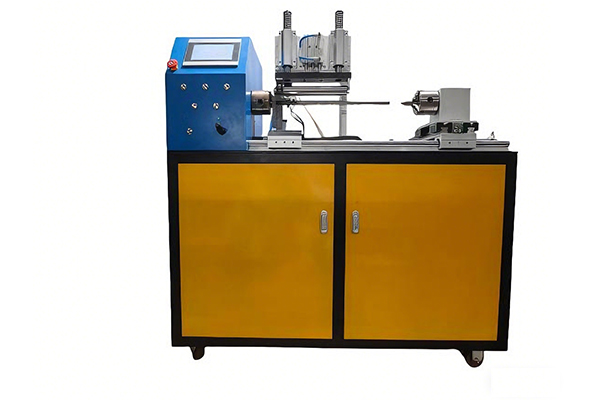

产品名称
Product name | 热流道绕管机
（智能、远程控制、自动计算）
二轴数控 | Hot runner pipe winding machine
(Intelligence \Remote control \Automatic calculation)
Two-axis numerical control |
|
|
|
产品组成
Product composition | 1.电机：伺服电机
2.控制系统：自主知识产权绕线控制系统
3.触摸屏语言：中英文 | 1. Motor: servo motor
2. Control system: winding control system with independent intellectual property rights
3. Touch screen language: Chinese or English |
|
|
|
|
主要参数
Main parameters | 1.电压：AC220 V
功率：400W
2.有效行程：300mm
3.有效直径: 8-80 mm
4.触摸屏：信捷7寸
5.PLC：信捷
6.远程模块：信捷
7.DC电源24V：深圳明纬
8.伺服电机:普菲德 400w
9.步进电机：57步进电机
10.Y轴丝杆1:4mm
11.T型导轨：2 | 1. Voltage: AC220V
Power: 400W
2. Effective travel:300mm
3. Effective diameter:8-80mm
4. Touch screen:Xinjie 7 inches
5. PLC:Xinjie
6. Remote module:Xinjie
7. DC power24V:shenzhen mingwei
8. Servo motor: Pufield 400W
9. Stepper motor:57 stepper motor
10. Y-axis lead screw1:4mm
11. T-shaped guide rail:2 |
|
|
|
|
|
|
|
|
|
|
注：触摸屏说明

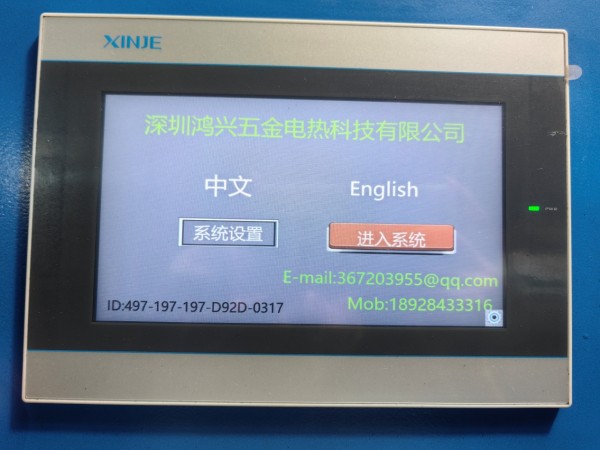

中英文切换，进入系统。
Chinese-English shife,get into the system.

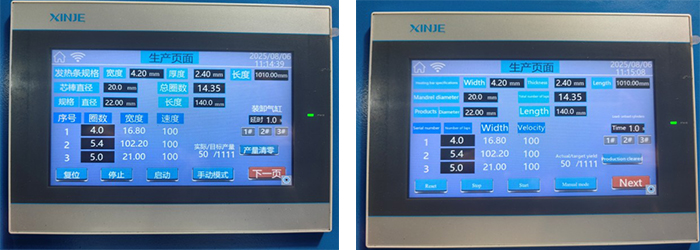

2.输入各项数据后，系统自动计算总圈数
输入数据如下：发热条尺寸：长-宽-厚
模具芯棒尺寸、规格（直径=长度mm）
系列1、2、3即可以绕3段不同的圈数，输入各段的圈数后，宽度自动计算。
手动模式下不可以启动，点击手动模式可切换为自动模式。
必须设置产量设置，否则点击开关不会启动。
气缸设置时间：正常为3秒，手动模式下点击下一页进入设置页面。
2. After inputting all the data,the system automatically calculates the total number of laps.
The input data is as follows:size of the heating strip:longth-width-thickness
dimensions and specifications of the mold mandrel(diameter=longth).
3. Series 1, 2, and 3 can be made with three different numbers of turns. After inputting the number of turns for each section, the width will be automatically calculated.
4. It cannot be started in manual mode. Clicking on manual mode can switch it to automatic mode.
5. The output setting must be set; otherwise, clicking the switch will not start.
6. Cylinder setting time: Normally 3 seconds. In manual mode, click the next page to enter the setting page.

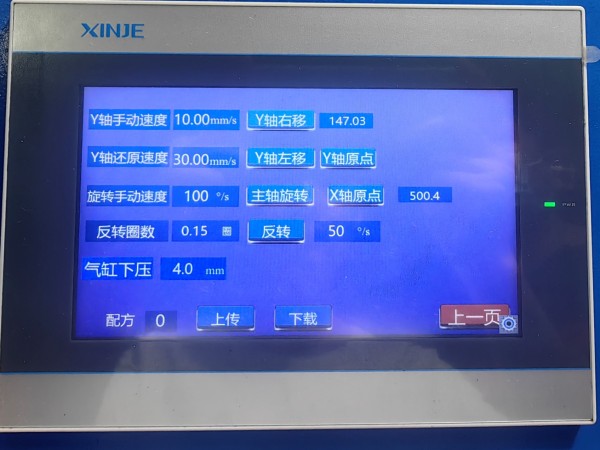

7.Y轴手动速度设置为10以下（注：出厂前已设置好速度）。
8.Y轴还原速度设置为50以下。
9.主轴旋转速度根据实际需求可调。
10.气缸下压位置设置为4-5mm。
11.Y轴左移和右移是设置起绕点，设置完成后点击Y轴原点直至上端数字变为0。
12.主轴旋转、X轴原点：点击主轴旋转，装夹具朝上12点方向，点击X轴原点变为0。
13.点击上一页，返回生产页面。
7. The manual speed of the Y-axis is set below 10 (note:the speed has been set before leaving the factory).
8. The Y-axis restoration speed is set below 50.
9. The rotational speed of the main shaft can be adjusted according to actual requirements.
10. The downward pressure position of the cylinder is set at 4-5 mm.
11. The left and right shifts of the Y-axis are used to set the starting point. After the Settings are completed, click on the origin of the Y-axis until the upper number becomes 0.
12. Spindle rotation and X-axis origin:click on the spindle rotation, install the fixture in the upward 12 o 'clock direction, and click on the origin of the X-axis to change it to 0.
13. Click on the previous page to return to the production page.
