技术参数
Technical parameters |
|
|
产品名称
Product name | 热流道绕丝机
（智能、远程控制、带数据库） | Wire winding machine for spring coil heater
(Intelligence \Remote control \Database) |
|
|
|
产品组成
Product composition | 1.电机：伺服电机
2.控制系统：自主知识产权绕线控制系统
3.触摸屏语言：中英文 | 1. Motor: servo motor
2. Control system: winding control system with independent intellectual property rights
3. Touch screen language: Chinese or Engish |
|
|
|
|
|
主要参数
Main parameters | 1.电压：220 V
功率：800 W
2.有效行程：1380mm
3.有效直径：0.1-6mm
4.绕线速度：1-10转/秒
5.触摸屏：信捷7寸
6.PLC：信捷
7.远程模块：信捷
8.张力器：ZX3YN中空型磁粉制动器
9.绕丝模式：单丝
10.DC电源24V：深圳明纬
11.伺服电机:普菲德 400w
12.步进电机：57步进电机 | 1. Voltage: 220V
Power: 800W
2. Effective travel:1380mm
3. Effective diameter:0.1-6mm
4. Winding speed: 1-10 rpm
5. Touch screen:Xinjie 7 inches
6. PLC:Xinjie
7. Remote module:Xinjie
8. Tensioner:ZX3YN hollow magnetic powder brake
9. Winding mode:single
10. DC power24V:shenzhen mingwei
11. Servo motor: Pufield 400W
12. Stepper motor:57 stepper motor |
|
|
|
|
|
|
|
|
|
|
|
|
触摸屏说明：

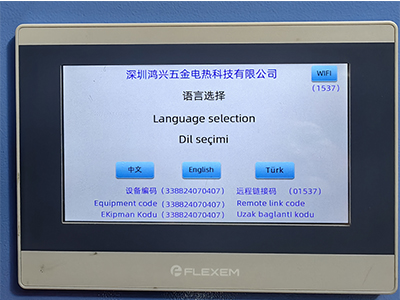

1.通电后开机，打开红色按钮，主页显示为语言选择，选择需要的语言，如中文、英文、土尔其语。
1.After powering on and turning on the machine, press the red button. The home page is for language selection. Select the language you need, such as Chinese, English, or Turkish.

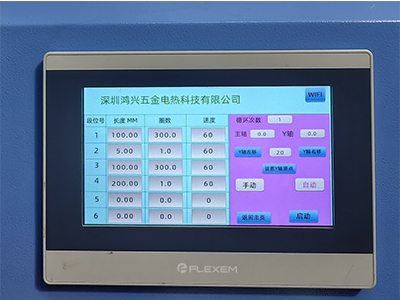

2.设置页面。
1）段位号:1-6表示可以绕6段不同节距的发热丝。
2）长度：表示发热丝绕好的长度。
3）圈数：表示发热丝绕制长度所需的节距。如：需要100mm的长度，0.2mm的发热丝线径（100/0.2=500圈）。
4）速度：可以根据个人需求设置。
5）循环次数：发热丝比较短时可以设置循环绕，总长度不可超过有效行程1380mm。
举例：绕制12条100mm长的发热丝。循环次数输入12，段位1中长度为100mm、圈数为300；段位2中长度输入5mm、圈数输入1，就设置完成了。
6）设置Y轴原点：点击左移或右移，调整起绕点。调整后点击设置Y轴原点3秒左右显示为0，即设置完成。
7）WIEI设置：点击WIFI进入设置页面，搜索WIFI。输入WIFI密码并保存，此设置可执行远程控制及软件升级。
8）所有设置都在手动模式下完成，启动设备需要在自动模式。
2.Settings page.
1) The section number :1-6 indicates that it can be wound with 6 sections of heating wires of different pitches.
2) Length: It indicates the length of the heating wire that has been wound.
3) Number of turns: It indicates the required pitch for the winding length of the heating wire. For example, a length of 100mm is required. The diameter of the heating wire with a diameter of 0.2mm is 100/0.2=500 turns.
4) Speed: Can be set according to personal needs.
5) Cycle count: When the heating wire is short, a cycle can be set. The total length must not exceed 1380mm of the effective stroke.
For example: Twelve heating wires with a length of 100mm need to be wound. Input the number of cycles as 12. In segment 1, set the length to 100mm and the number of turns to 300. Set the length to 5mm and the number of turns to 1 in position 2. That's it.
6) To set the origin of the Y-axis: Click left shift or right Shift to adjust the starting point. After adjustment, click to set the Y-axis origin for about 3 seconds. If it shows 0, the setting is complete.
7) WIFI Settings: Click on WIFI to enter the Settings page and search for WIFI. Enter the WIFI password and save it. This setting enables remote control and software upgrades.
8) All Settings are completed in manual mode, and the device needs to be started in automatic mode.
